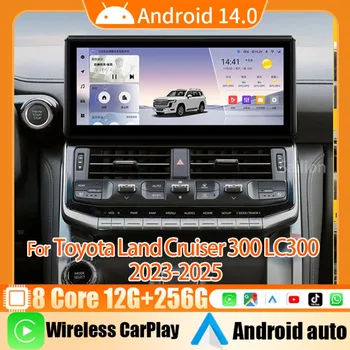

This 12.3 inch QLED multimedia screen is a direct-fit upgrade for the Toyota Land Cruiser 300 LC300 covering 2023, 2024 and 2025 model years. Running Android 14 on an octa-core processor with up to 12GB RAM and 256GB UFS 3.1 storage, the unit delivers fast app launches, smooth multitasking and responsive navigation. The fully laminated QLED panel outputs a 1920×720 resolution with anti-glare coating for clear visibility in both day and night conditions.
Product Specifications
- Compatible Vehicle: Toyota Land Cruiser 300 LC300 (2023, 2024, 2025)
- Display: 12.3 inch fully laminated QLED touchscreen, 1920×720 resolution
- Operating System: Android 14
- Processor: Octa-core CPU (UNISOC A7870 Cortex-A76 at 2.7GHz / UIS7862 / UIS8581)
- RAM Options: 6GB, 8GB or 12GB
- Storage Options: 128GB, 256GB (UFS 3.1)
- Connectivity: WiFi 2.4G plus 4G plus 5G, Bluetooth 5.1
- GPS: Dual-frequency positioning supporting GPS, BeiDou and GALILEO
- Audio: TDA7851 amplifier chip with 36-band DSP EQ adjustment
- USB: USB 3.2 Gen1 at 5Gbps (A7870 variant)
- HDMI Interface: Supported on A7870 variant
- Operating Temperature: Minus 30 degrees Celsius to plus 70 degrees Celsius
- Tuner: FM/AM/RDS
- Warranty: 1 year from purchase date
- Origin: Mainland China
Display
The QLED panel maintains vivid colour accuracy over extended use due to its anti-aging screen construction. Compared to standard IPS displays, the QLED produces noticeably richer contrast and colour saturation. The screen supports split-screen mode, allowing simultaneous display of navigation, music and other applications across one panel.
Processor and Storage
The flagship A7870 variant uses a 6nm process node with Cortex-A76 cores running at 2.7GHz and an 8 TOPS NPU. UFS 3.1 storage delivers read speeds up to 1908MB/s and write speeds up to 1705MB/s, representing a roughly seven-fold improvement over the previous generation UIS7862 chip. The LPDDR4 plus UFS 3.1 memory combination reduces multi-task scheduling delays for globally smooth system control.
Connectivity
Supports wireless CarPlay, wireless Android Auto and Huawei HiCar without cables. A built-in 4G SIM card slot with external antenna cable allows SIM replacement without disassembly. The unit connects to over 20 pre-installed language environments and supports download of apps via Google Play, YouTube, Google Chrome and similar platforms over 4G or WiFi.
Audio
The TDA7851 amplifier chip combined with 36-band DSP equalisation covers the full frequency range from low bass to high treble. Bluetooth 5.0 with aptX HD technology reduces sound quality loss during wireless music transmission. The system syncs contacts, call records and Bluetooth music from paired phones.
Navigation
Dual-frequency GPS simultaneously receives signals from GPS, BeiDou and GLONASS satellite networks, speeding up positioning lock and improving accuracy. Built-in offline map support covers North America. Online and offline navigation applications are both compatible.
Safety Features
Includes a free AHD 720P rearview camera with wide-angle lens to reduce blind spots during reversing. Optional ADAS DVR camera adds Lane Departure Warning System and Forward Collision Warning System functionality. Optional 360-degree panoramic camera package requires four ultra-clear lenses and an additional wiring harness adapter.
Steering Wheel Control
Original factory steering wheel controls are retained and remapped to the new unit via a learning function. Track skipping, volume adjustment and call answering remain operable from the steering wheel without driver distraction.
Installation
Plug-and-play fitment with no permanent wiring modifications required. Compatible with 2022 to 2025 LC300 variants including basic configuration models without a factory screen and mid-range models with an 8 inch factory screen. Confirm your specific dashboard variant against product images before ordering.
What Is Included
Main screen unit, AHD 720P rearview camera, installation tool kit, 3-year warranty card, user manual.
Important Notes
Import duties and taxes are the buyer’s responsibility and are not included in the product price. Contact the seller with your vehicle model, year and a photo of your existing stereo unit to confirm compatibility before purchasing. For any installation issues, contact the seller directly before raising a dispute.
Shipping
Dispatched within 2 working days of payment clearance via DHL or FedEx. Remote area surcharges of 40 to 50 USD apply to addresses classified as remote by DHL, UPS or FedEx.
Returns and Warranty
All units are shipped new directly from the factory. Report defective items within 3 days of receipt for replacement or refund. Units may be returned to China for repair within 3 months of purchase. Return postage is the buyer’s responsibility. A 1-year factory warranty applies excluding accessories and damage caused by misuse, improper installation, unauthorised repair or physical accident.
