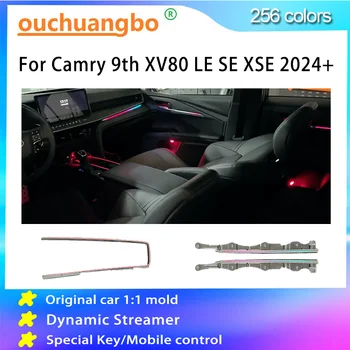

This is a purpose-built interior ambient lighting system from Ouchuangbo, engineered specifically for the 2024 and later Toyota Camry 9th generation (XV80) in LE, SE, and XSE trim levels, covering both left-hand and right-hand drive configurations. The system illuminates multiple interior zones simultaneously, including the central control panel, door contour lines, handle surrounds, gear selector area, storage box, saddle trim, and foot well sockets, delivering a layered, cabin-wide light environment across up to 20 or 24 individual light points depending on the variant selected.
Colour output spans 256 shades across the full RGB spectrum with six switchable lighting modes. Control is achieved through a dedicated mobile phone app, a physical special key fob, the factory steering wheel buttons, or the main door mirror button, making the system operable without leaving the driving position. Panels are manufactured using 1:1 moulds taken directly from the XV80 Camry interior, ensuring each component follows the factory contour lines of the cabin without gaps or misalignment.
This is not a generic LED strip kit. It is a model-specific ambient lighting system with vehicle-matched panel geometry, multi-zone independent control, and dynamic animation modes including music-reactive rhythm response.
Key Features and Benefits
- 256-colour RGB output across the full visible spectrum; select any shade via mobile app colour wheel
- Six lighting modes: monochrome, breathing, gradient, burst, automatic cycle, and music rhythm (audio-reactive)
- 20-light RGB variant and 24-light Starlight and Starshower variants available; select configuration at time of order
- Multi-zone illumination covering: central control lamp, four door contour lamps, saddle lamp, handle lamps, storage box lamp, foot socket lamp, and gear lamp
- Horn ring lamp available as an optional add-on for the 24-light variants
- Four control methods: mobile phone app, physical special key, factory steering wheel buttons, main door rearview mirror button
- 1:1 mould-matched panel construction to the XV80 Camry interior for seamless fitment and zero visible gaps
- Non-destructive installation; no permanent modification to factory interior trim required
- Brightness fully adjustable through app or physical controls
- Soft, diffused LED output that is visible without causing glare or driver distraction
- Operating temperature range of minus 25 degrees Celsius to plus 80 degrees Celsius; suitable for hot and cold climate use
- CE and RoHS certified
- 12-month warranty with 3-day replacement window for defective units
Material, Finish and Colour Options
Material: ABS plastic housings with LED light bar components and fibre optic or direct LED illumination elements depending on zone
Finish: Interior trim-matched panel surfaces; integrated seamlessly with factory cabin materials
Colour Options: Full 256-colour RGB spectrum user-selectable via mobile app; Magic variant includes multi-pixel addressable LEDs capable of independent zone colour assignment
Vehicle Compatibility and Model Years
Compatible Vehicles:
Toyota Camry 9th Generation (XV80) 2024 and later in LE, SE, and XSE trim levels, covering both left-hand drive and right-hand drive configurations
Variants Available at Time of Order:
RGB 20 lights configuration covering 20 individual light points across standard interior zones
Starlight 24 lights configuration with 24 light points including optional horn ring lamp
Starshower 24 lights configuration with 24 light points including optional horn ring lamp (colour animation variant)
Exclusions: Not compatible with earlier Camry generations including the XV70 (8th generation) or XV50 (7th generation). Not compatible with Camry Hybrid if interior trim structure differs from the standard XV80 platform. Buyers with non-standard trims or regional variants should contact the seller with vehicle photos and interior images before purchasing to confirm fitment. The seller’s engineering team will confirm compatibility within 24 hours of receiving vehicle details.
Dimensions and Technical Details
- Model number: G02A02-M-103
- Brand: Ouchuangbo
- Working voltage: 12V DC
- Working current: 300mA to 1A
- Working power: 3.6W to 12W
- Working temperature: minus 25 degrees Celsius to plus 80 degrees Celsius
- Output sound pressure (music rhythm mode): 87dB sensitivity
- Item weight: 2.5kg
- Panel size: 70cm (primary central control lamp strip)
- Certifications: CE, RoHS
- Warranty: 12 months maintenance, 3-day replacement for defective units
- High-concern chemicals: None declared
- Origin: Mainland China
Package Contents (RGB 20-light and 24-light variants): Central control lamp, four door contour lamps, saddle lamp, handle lamps, storage box lamp, foot socket lamp and gear lamp combined unit, special key controller, control box, power cord set. Horn ring lamp included in 24-light variants only.
Installation Notes and Special Functions
Installation requires routing wiring through the interior cabin and connecting to the vehicle’s 12V power supply. The system uses a non-destructive fitment method with panels designed to clip or fit into existing factory trim locations without drilling or permanent alteration to the interior. However, installation involves accessing interior panels, routing cabling, and connecting to the vehicle electrical system. This work requires a working knowledge of automotive electrical systems and interior disassembly. Professional installation at an automotive electronics workshop is strongly recommended for buyers without this experience. Installation costs are not included in the product price. The seller’s engineering team provides post-order technical support to assist with fitment questions; buyers are advised to contact the seller with questions within 24 hours of placing an order to allow time for pre-installation guidance. Note that some wiring connections may require tapping into the vehicle loom depending on the specific installation zone. Confirm all wiring requirements with the seller before beginning installation.
