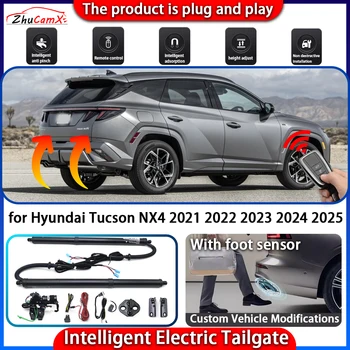

Upgrade your Hyundai Tucson NX4 with intelligent power tailgate automation engineered for 2021 through 2025 model years. This comprehensive electric lift system transforms manual tailgate operation into effortless hands-free convenience through multiple control methods including key fob activation, cabin button, tailgate touch controls, and optional foot sensor operation.
The dual electric strut assembly delivers smooth, silent operation powered by high-torque motors consuming minimal battery power. Each strut features carbon structural steel construction with sealed ball-head joints and internal lubrication for extended durability. The system completes full opening cycles in approximately 4 seconds while maintaining stable operation even with aftermarket spoilers or heavy cargo loads up to 150kg.
Advanced three-channel independent control algorithms ensure precise bilateral synchronization during opening and closing sequences. The IPX8-rated waterproof components guarantee reliable performance in all weather conditions, from heavy rain to extreme temperatures. Intelligent anti-pinch technology monitors motor load and activates automatic reversal when detecting obstacles, stopping with less than 100N of force to prevent injury or damage.
Customizable height memory allows programming the tailgate to stop at any position between fully closed and maximum opening angle. Six-speed adjustment controls lifting velocity to match user preferences or parking clearance constraints. The electromagnetic suction lock automatically secures the tailgate during closing, eliminating manual slamming and ensuring proper latching every time.
Installation integrates with factory wiring through plug-and-play harness connections requiring no wire cutting or vehicle coding. The system communicates via CAN/LIN bus protocols to maintain compatibility with original key fob functions and dashboard indicators. Professional installation recommended for optimal alignment and calibration, though comprehensive manuals support DIY installation for experienced technicians.
Key Features:
- Universal Control Access: Original key fob, cabin switch, tailgate button, rear hatch release, optional kick sensor
- Intelligent Safety Systems: Anti-pinch detection under 100N force, obstacle avoidance with automatic opening, audible warnings for improper closure
- Customizable Operation: Programmable height memory, six-speed velocity adjustment, personalized opening angles
- Weather-Resistant Design: IPX8 waterproof rating for motors and electronics, corrosion-resistant carbon steel construction
- Silent Performance: Low-noise motor operation under 50dB, dual damping brake technology for smooth stops
- Power Efficiency: Low consumption design averaging 15A normal operation, 30A peak during initial lift
- Factory Integration: No programming required, plug-and-play harness installation, retains OEM warranty on unmodified components
Technical Specifications:
- Compatible Models: Hyundai Tucson NX4 (2021, 2022, 2023, 2024, 2025)
- Voltage: 12V DC automotive electrical system (9V-16V operating range)
- Opening Speed: Approximately 4 seconds full cycle (adjustable)
- Motor Type: Dual high-torque electric struts with ball-screw drive
- Control System: Three-channel independent processor with CAN/LIN communication
- Waterproof Rating: IPX8 (submersion resistant)
- Load Capacity: Supports tailgate weights plus 150kg+ additional cargo/accessories
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Lifespan: 50,000+ cycle durability testing
- Certification: CE compliant, EMC Level 4 electromagnetic compatibility
Installation Notes: Non-destructive installation utilizes factory mounting points and original screw positions. System includes complete wiring harness, control module, dual electric struts, electromagnetic lock assembly, cabin control switch, and all necessary brackets. Lock configuration varies by vehicle specification—consult fitment guide for upper suction, split suction, or lower suction lock scheme applicable to your Tucson trim level.
Package Contents:
- 2× Electric lift struts with integrated motors
- 1× Central control module (independent socket design)
- 1× Electromagnetic suction lock assembly
- 1× Cabin control switch with wiring
- Complete plug-and-play wiring harness
- Mounting brackets and hardware kit
- Installation manual with configuration guide
Compatibility Verification Required: Confirm your Tucson NX4 model year and trim level before ordering. Contact with VIN or vehicle photos showing rear tailgate configuration for fitment confirmation.
