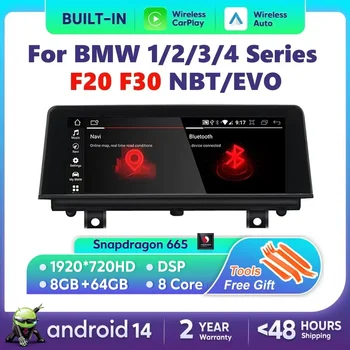

This is a full Android 14 multimedia head unit built specifically for BMW 1, 2, 3, and 4 Series vehicles running NBT or EVO factory systems. It replaces the original screen with a sharp IPS touchscreen in either 8.8 inch or 10.25 inch format, adding wireless CarPlay, wireless Android Auto, built-in GPS navigation, 4G LTE connectivity, split screen capability, and a dual system that lets you switch between Android and your original BMW interface at any time. The unit retains compatibility with your factory steering wheel controls, reverse camera, audio speakers, media knob, and iDrive system. It is a plug and play installation designed to sit directly in the factory screen aperture without cutting or modification to the dashboard structure.
CRITICAL BEFORE PURCHASING: This unit is only compatible with BMW models running the NBT system (6 pin LVDS plug) or EVO system (6 pin LVDS plug). It does NOT fit the older CCC system (10 pin) or CIC system (4 pin). Buyers must confirm their factory system type before ordering. When placing your order, notify the seller of your exact vehicle model, year, and system type (NBT or EVO) so the correct configuration is dispatched.
Key Features and Benefits
Wireless CarPlay and wireless Android Auto operate without cables. No dongle required. Connect your iPhone or Android phone via WiFi for full mirroring and voice control through Siri or Google Assistant.
The Qualcomm Snapdragon 665 eight-core processor (on top-tier variants) runs at up to 2.0GHz, delivering fast app loading, smooth map rendering, and responsive touch input with no lag.
8GB RAM and 128GB internal storage provide headroom for navigation apps, offline maps, media libraries, and multitasking without performance degradation.
The 1920 by 720 IPS panel delivers a sharp, high-contrast display across both 8.8 inch and 10.25 inch screen sizes, a significant resolution increase over the factory screen.
Dual system switching allows instant toggling between the Android interface and the original BMW car system. OEM functions including vehicle information display, speed readout, fuel level, oil temperature, parking brake status, and seat belt warning remain accessible within the Android environment.
Built-in DSP audio processor supports multi-dimensional surround sound, lossless music playback, and a fully adjustable equaliser with preset modes including Standard, Pop, Rock, Jazz, and Classic.
4G LTE support via Micro SIM card slot. The unit can also function as a WiFi hotspot for other devices in the vehicle. 5G WiFi is also supported.
Split screen mode displays navigation and music or video simultaneously on a single screen.
Built-in GPS plus GNSS satellite system for accurate positioning. Android GPS requires connection of the included GPS antenna. CarPlay GPS operates independently without the antenna.
Factory camera input supports original BMW reverse cameras. AHD camera input is also compatible for aftermarket camera upgrades.
Steering wheel controls, original media knob, and factory media player buttons all remain fully functional after installation.
Built-in microphone and speaker for hands-free calls. Voice control via Siri or Google is activated directly through the CarPlay or Android Auto interface.
Supports multi-language OSD including English, German, French, Spanish, Italian, Portuguese, Arabic, Korean, Japanese, Thai, Turkish, Ukrainian, Polish, Russian, Vietnamese, Danish, Hebrew.
Free firmware updates provided. 24 hour, 7 day technical support available from the Nunoo factory team. 2 year warranty included.
Material, Finish and Colour Options
Material: Plastic housing with metal internal frame and IPS touch screen panel
Finish: Gloss black bezel, colour-matched to BMW factory interior trim
Colour Options: Black (single option, matched to OEM fitment)
Vehicle Compatibility and Model Years
NBT System Fitment (6 pin LVDS):
BMW 1 Series F20 F21, 2 Series F22 F23: 2012 to 2016
BMW 3 Series F30 F31 F34 F35, 4 Series F32 F33 F36: 2013 to 2016
EVO System Fitment (6 pin LVDS):
BMW 1 Series F20 F21, 2 Series F22 F23: 2017 to 2019
BMW 3 Series F30 F31 F34 F35, 4 Series F32 F33 F36: 2017 to 2020
Exclusions: NOT compatible with CCC system (10 pin LVDS plug, pre-2010 models) or CIC system (4 pin LVDS plug). Not suitable for E-chassis BMW models. Buyers must verify their system type by checking the number of pins on the LVDS connector behind the existing screen, or by contacting the seller with vehicle details before ordering.
Dimensions and Technical Details
Screen sizes available: 8.8 inch and 10.25 inch IPS display
Resolution: 1920 by 720 pixels (IPS panel on Android versions); Linux version uses 1280 by 480
CPU options by variant: Linux (no Android), K3 (Mediatek 8581, 8 core, 1.8GHz, 4GB RAM plus 32GB ROM), K8 and K8 Plus (Mediatek 8581, 8 core, 1.8GHz, 8GB RAM plus 64GB or 128GB ROM), Z1 and Z1 Plus plus U9 and Z9 Max (Qualcomm Snapdragon 665, 8 core, 2.0GHz, 8GB RAM plus 128GB or 256GB ROM)
GPU: Adreno 610 at 950MHz (Qualcomm variants)
RAM: 4GB to 8GB depending on variant
ROM: 32GB to 256GB depending on variant
Operating system: Android 14 (all versions except Linux)
Output power: 4 x 45W
Voltage: 12V DC
Interface: Plug and play, double DIN
USB ports: 2 x USB
Camera input: AHD 720P (standard) or AHD 1080P (top variant)
Satellite: GPS plus GNSS
Network: 4G LTE with SIM card slot plus WiFi (2.4GHz and 5GHz)
Certification: CE, FCC
Item weight: 2kg
Warranty: 2 years
Installation Notes and Special Functions
This is a plug and play unit designed to connect directly to the factory LVDS harness. The unit replaces the existing screen only. No dashboard cutting is required for the screen installation.
The GPS antenna cable for Android GPS does require routing to a suitable location. This may involve minor trimming or routing behind the dashboard. Note: CarPlay GPS does not require the antenna and functions immediately without it.
If the My BMW app shows no signal after installation, check that the LVDS plug from the original screen is connected to the new unit. If the display menu appears in low resolution, navigate to Settings, then Factory Settings, enter access code 666666, select BMW Settings, and choose Automatically Select.
If CarPlay audio is not heard, disconnect your phone from the original BMW Bluetooth pairing and reconnect through the new unit only.
After purchase, contact the seller with your exact vehicle model, production year, and system type (NBT or EVO). This ensures the correct firmware and configuration is prepared before dispatch.
Professional installation is strongly recommended. Incorrect identification of the factory system type (NBT vs EVO vs CIC vs CCC) will result in the unit not functioning. Buyers unfamiliar with automotive electrical installations should have the unit installed by a qualified auto electrician or BMW specialist.
Package includes the head unit, installation guide, and simple installation tools. A user manual PDF is available from the seller.
